Reference: Types of Ships

BULK CARRIERS
-


Types of ships Types of ships

Bulkcarriers ("bulkers"), are the great work horses of the shipping world, carrying raw dry cargoes in huge cavernous holds, such as coal, iron ore, grain, sulphur, scrap metal. Until recently, there had been a huge demand for these vessels, driven by the extraordinary expansion of the Chinese economy. Imports of iron ore into China boosted the earnings of bulk carrier owners as freight rates went through the roof into uncharted territory. For a 'Capesize' bulkcarrier, daily hire rates of over $280,000 per day were recorded. Then came the downturn in late 2008 and freight rates have slumped, with bulkcarriers struggling to be fixed above $20,000 ! - quite a dramatic change in only a few months. Unfortunately, huge numbers of these vessels were ordered from shipyards during the 'boom' times. Taking about 2 years to build, many of these new ships will be delivered only to be sent probably straight to lay-up, as no work can be found for them.

Types of ships

Types of ships


The vessel on the top left is that rare beast called a "geared" bulkcarrier, so called because it carries it's own cargo cranes - very useful when visiting ports lacking portside cargo handling equipment.
The vessel on the top right is a more regular design of "gearless" bulkcarrier.

Types of ships


Bulkers range from about 25,000 Deadweight tons ("handysize") through the medium size
("Panamax") vessels of about 75,000 DWT, to the giant ("capesize") vessels of up to 200,000 DWT (Some go bigger than that even !). Demand for the large "Capesize" bulkcarriers has never been higher, and there are a few "subdivisions" within this "Capesize" type, such as "Kamsarmax" (being the largest vessels able to enter the port of Kamsar, Equatorial Guinea, at about 175,000 DWT), "Newastlemax" (being the largest to be able to enter the port of Newcastle, Australia at about 185,000 DWT) and "Setouchmax" (being the largest able to navigate the Setouch Sea, Japan at about 203,000 DWT). With such high demand outstipping supply, some Very Large Crude Carriers are being converted to Very Large Ore Carriers (VLOC) and this is now a new size type for bulkcarriers over 200,000 DWT. Due to the heavy use that these vessels are put to, their life-expectancy is less than it would be for say, a container ship. A problem facing the industry is that with freight rates having slumped so dramatically, there is little money for ship owners to maintain the older tonnage. New equipment, experienced crews (another rare commodity these days) are all expensive. This coupled with the soaring cost of insurance (following a 'claims bulge' from the start of the decade), is leading to a 'white knuckle ride' for many operators of bulkcarriers.

Types of ships

Types of ships

Types of ships

Types of ships

TANKERS

Types of ships

Types of ships

Types of ships

Tankers are designed to carry liquid cargoes (not just oil) although the carriage of crude oil has brought the tanker unwelcome attention and largely unjustified criticism. Oil tankers come in two basic flavours, the crude carrier, which carries crude oil, and the clean products tanker, which carries the refined products, such as petrol, gasolene, aviation fuel, kerosene and paraffin. Tankers range in all sizes, from the small bunkering tanker (used for refuelling larger vessels) of 1000 DWT tons to the real giants: the VLCC (Very Large Crude Carrier) of between 2-300,000 DWT and the ULCC (Ultra Large Crude Carrier) of over 300,000 DWT

HANDYSIZE TANKER = 20,000 - 30,000 DWT

HANDYMAX TANKER = approx 45,000 DWT

PANAMAX TANKER = approx 79,000 DWT

AFRAMAX TANKER = between 79,000 - 120,000 DWT

SUEZMAX TANKER = between 120,000 - 180,000 DWT

V.L.C.C. TANKER = between 200,000 - 300,000 DWT

U.L.C.C. TANKER = over 300,000 DWT

Types of ships

It should be remembered that over 60% of the world's oil is transported by these tankers, and over 99% of that arrives safely without causing pollution. Indeed most oil pollution seen on beaches comes from the engine rooms of vessels (of all types) and not from the cargo tanks of tankers.

To ensure that oil tankers transport to all parts of the world, and not just the affluent western countries where freight rates might be expected to be higher, (and therefore tankers congregate), there is a system called WORLDSCALE, which ensures that net freight earnings for tanker owners are the same, regardless of length of voyage and varying costs (such as bunkers and port dues), so that a tanker will earn (net) as much per day on a route that is long and arduous as they will on a short and low cost voyage. This ensures that tankers take their goods to all parts of the world and don't just concentrate on the lucrative Middle East to Western Europe or USA routes.

Types of ships
HANDY SIZE

Types of ships
PANAMAX SIZE

Types of ships
AFRAMAX SIZE

Types of ships
SUEXMAX SIZE

Types of ships
V.L.C.C. SIZE

Types of ships
U.L.C.C. SIZE

Types of ships


Those who would criticise the marine Tanker industry would do well consider walking to work in the morning, to an unheated office, with no power for computers, lights or communications. We have a lot to thank the tanker industry for, so don't knock it when you depend on it so much ! Increased regulation on the construction, maintenance and crew competence of tankers, such as under the Maritime Pollution Convention (MARPOL) and in the USA, the U.S. Oil Pollution Act of 1990 (OPA90) has required double hull tankers to be built (of questionable value, but of undoubted high cost!), the phasing out of single skinned tankers and COFRs (Certificates of Financial Responsibility), which demonstrate that the operator has the financial backing, should a pollution event occur, to pay for the necessary clean-up.

In the "real world" (i.e outside of the USA) international agreements such as the CLC and Fund Conventions have provided clear levels of compensation that the oil industry are committed to provide to protect the environment. The MARPOL convention is a major force in ensuring a professional attitude is required of any vessel owner/operator carrying persistent oil as cargo.

-

REEFERS
-



Types of ships Types of ships

Refrigerated Cargo Carrying Vessels ("Reefers") are purpose built to carry fruit, meat and other food products across the sea in a fresh and clean manner.

Perhaps the most famous of these types of vessels are the banana carriers, trading between the Caribbean and Europe. They are sleak and fast, as their trade demands, with cooling (refrigeration) equipment to keep their cargoes fresh.

Types of ships


Historically the months of February and March see the greatest use of these vessels. This gives a clue to their current weakness, from a commerical point of view. Any vessel which is governed by highly seasonal trades, will inevitably have high and low activity periods during a year. At some points, there is very little work for dedicated refrigerated cargo vessels, making them rather inefficient, compared to container ships, (now with reefer box capabilities) which can switch trades in low season to carry other goods. The dedicated reefer vessel (probably the most loved type of cargo ship to work on as a seaman) is therefore becoming less common, with fewer being built each year.

LIVESTOCK CARRIERS


Types of ships

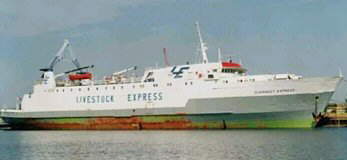

The carriage of live animals around the world is performed by specialist vessels, designed (or adapted) to transport large numbers of cattle and sheep in secure but humane conditions. The trade is largely from Australia to the Middle East &/or S.E. Asia. One modern vessel may carry up to 125,000 sheep.

This transport of live animals requires experienced and specialised operators. The dangers of disease, rejection, injury and death to and from the animals is particularly high, coupled with the current activities of animal rights activists. When a livestock carrier has a fire or sinks, the loss of life of the animals can be appalling. Remember, sheep and cattle can't swim and they are not very good, when it comes to Lifeboat Drills !!!

Below are some examples of the perils associated with livestock carriage, for which I am grateful to Phil Grieve's lecture at the IUMI Conference on Singapore.

Types of ships
The "UNICEB", which caught fire and sank in 1996.
67,000 sheep were killed.
-

Types of ships
The "GUERNSEY EXPRESS", which sank in 1996.
1,592 cattle were killed.
-

Types of ships
The "TEMBURONG", Failure of the ventilation equipment in 1999.
829 cattle died.

Types of ships
The "BECRUX", in 2002 while en route to the Middle East.
880 cattle died.


In 2003, Australia exported over 4,500,000 sheep and nearly 800,000 cattle.
In the hot temperatures that these vessel have to sail in, it is wise NOT to be
down-wind of them !!!!

LNG CARRIERS
-


Types of ships Types of ships

The LNG carrier (Liquified Natural Gas) and it's cousin the LPG carrier (Liquified Petroleum Gas) are products of the late twentieth century. LNG and LPG are the preferred fuel types of certain countries for their industrial power needs. Japan is one such country, and so LNG needs to be transported to Japan, but is not the easiest of cargoes to be transported. In its natural state, LNG is a gas, so to transport it, it needs to be either pressurised into a liquified form, or kept as a liquid by reducing the temperature (simple application of Boyle's Law in physics !).

Types of ships

Types of ships

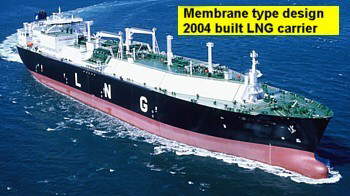

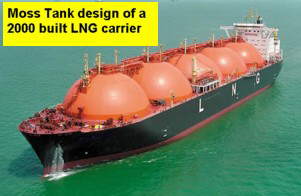

The shape of the LNG Carrier is quite unmistakable, with the shape of the Moss tanks (which are like enormous spherical thermos flasks !) visible along the deck, which has led to the nickname of "Dinosaur Eggs Carriers". An alternative design is known as the "membrane" type, which allows for a more standard shape of vessel without the "eggs".

Obviously, the carriage of an explosive gas - kept at below freezing temperatures as an unstable liquid presents a very dangerous cargo, yet it is for this very fact, that LNG Carriers have about the best safety record of all maritime vessels. Only the best officers and crews are employed on these vessels, and the vessels themselves are maintained meticulously, and renewed frequently. There have been accidents involving LNG / LPG carriers, but where such events have occurred, the crews or salvors have so far, successfully managed to vent off the cargo into the atmosphere, thus rendering the lethal cargo harmless.

CAR CARRIERS
(P.C.C. &/or P.C./T.C vessels)

Types of ships

Types of ships

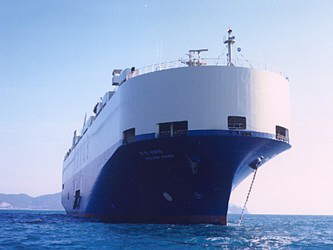

The car carrier or more correctly the P.C.C. (Pure Car carrier) or P.C./T.C. (Pure car/truck carrier), could never be described as a beauty of the seas, yet in it's rectangular design, is purpose built to carry large numbers of cars.

Manufacturers of cars, mainly in Japan and Europe, use these vessels to ship large quantities of their products around the world. Every Japanese, Korean, or European car you see on your roads, may have been brought across on one of these car carrier vessels

Types of ships


A few years ago, a car carrier, called the REIJIN ran aground and partially submerged off Spain, full of Japanese cars. The manufacturers were so scared of people stealing whole cars or parts from the wrecked vessel (which was easy to reach from land) that they ordered the vessel, and it's cargo of brand new vehicles, to be towed out into deep water and sunk.

More recently, the TRICOLOR sank after a collision with another vessel in the English Channel, proving, yet again, the inherent weakness in the design of vessels with a single massive hold. OK...until water gets in. With no watertight bulkheads, the free surface effect of that water rapidly de-stabilises the whole vessel. In a matter of seconds they can capsize.

CONTAINER SHIPS


Types of ships Types of ships

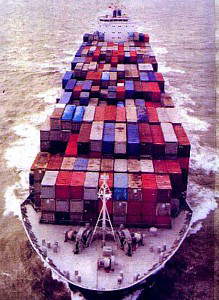

Until the dramatic economic dowturn in late 2008, the Containership or "Boxship" had been the great success story of the last 40 years. General cargo was historically carried in general, dry cargo vessels, without any particular specialisation. Cargo loading and unloading was always a slow, labourious task, due to the varying shapes, sizes, weights and fragility of the numerous cargoes being carried on any one vessel. The idea of standardising the carrying box, or container at 20 feet long (the TEU = 20 foot equivalent unit) was a breakthrough that allowed for vessels to be designed to carry these standard sized boxes, and for dockside equipment also to be designed to lift , stack and store these specific shapes.

In 1937, a New Jersey truck driver named Malcolm McLean, sitting in his truck at the New Jersey Docks suddenly had a novel idea. Instead of large numbers of stevedores having to manually load cargo, why not create a standard shaped box into which goods can be handled in a standard way ? His idea took 20 years before the first container transit was undertaken (with his own money, because no shipowners would listen to his idea) In 1969 Malcolm McLean retired as a multi-millionaire !!!

So, from a "back of the fag-packet" idea was born the container ship. Initially, these were small vessels of up to 10,000 DWT, carrying no more than a few hundred TEU, but have grown in size as the success and economies of these vessels have become more obvious. Today's container ships are being built to take 13,000 T.E.U., such as the EMMA MAERSK.

As well as the Twenty foot container, many goods need larger boxes, so there is a larger standard sized container, the FEU (Forty Foot Equivalent Unit). On board a modern containership, the complex method of loading the TEU and FEU in an order that will facilitate offloading at the other end is now largely computerised. As if specially designed to give Chief Officers a headache, a modern development is the "high box", a standard container in length and width, but 9' 6" high (instead of the standard 8'). Refrigerated containers ("reefer containers") have become very popular for the carriage of meat and fruit. Due to their flexibility of usage, these reefer containers are gradually destroying the need for specialised "reefer" ships, whose numbers are declining due to their business being taken over by these reefer containers.

Types of ships

The containers are anchored by "twist locks", which simply twist round to lock the 8 corners of the container to the neighbouring container. The outside of the whole stack is then further fixed with lashing poles diagonally from corner to corner.

Types of ships



These vessels are built for speed, and can reach upwards of 28 knots, moving cargoes around the world. Globally storing and returning empty boxes has become an industry in itself !

Through-transport or inter-modal transport, means that these containers can be offloaded from a ship, and rapidly loaded onto trains or onto container lorries for onward transport to the place of delivery. Recently, this has led to serious security concerns.

DRY CARGO VESSELS


Types of ships

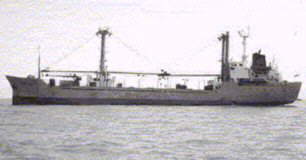

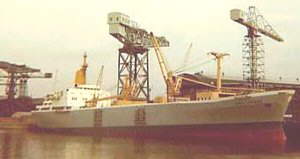

Until vessels started to be built to carry specific cargoes, all vessels were simply general or dry cargo vessels, ie built to carry any and all cargoes either in drums and bales or on pallets. Such cargoes were put in general holds with no specialisation. The role of the general/dry cargo vessel began to wane with the arrival of bulkcarriers and tankers, but the decline of these general vessels has accelerated since the arrival of containerisation (in the 1960's). Not only are container ships able to carry greater volumes of cargo in standard shaped cargo containers, the time spent loading and discharging has been dramatically reduced. Whereas a dry cargo vessel may take 3 - 4 days to load or discharge, a container ship can achieve the same in a matter of hours. Although general/ dry cargo vessels remain as the largest (in pure numbers) of cargo carrying vessels, they are often smaller (rarely above 50,000 Gross tons) than the specialised vessels that are slowly replacing them.

HEAVY LIFT VESSELS -



Types of ships Types of ships

Heavy lift vessels are quite amazing vessels, built to load, carry and discharge large, unusual shaped cargoes (or even smaller vessels) that will simply not fit inside the holds of conventional vessels.

Types of ships

Shaped quite unlike any other cargo vessels, some heavy lift vessels can be ballasted down, so that cargoes (often on pontoons) can be floated on. The vessel is then raised, lifting the cargo, (now resting on the deck of the heavy lift vessel), out of the water, ready for ocean transit, often to the other side of the world. These specialist vessel are often used in the oil industry for the carriage of jack up rigs. Other unusual cargoes can include power plants, desalination units, generators and yachts. In 2003, heavy lift vessels were used to carry away the cut up sections of the TRICOLOR when she was removed from the bottom of the Dover Straits.

TUGS

Types of ships

Types of ships

The tugboat has a number of functions ranging from towing vessels into berths, to firefighting, salvage and anchor handling/positioning.

Tugs range in size (and power) depending on the tasks that they required to perform. A small harbour tug may only have 3 - 400 BHP (Brake Horse Power), whereas a large ocean-going salvage tug may have up to 10,000 BHP engines, capable of towing large cargo vessels off sandbanks and rocks.

The European tug (as pictured above) is very different in shape and size, from the U.S. "Pushboat" which can be seen plying up and down the Mississippi river system, and modern European style tugs are being built with their engines amidships, propellers on the two sides of the vessel, to allow 360 degree manoevrability, ie turning on a sixpence, and sailing in any direction with equal ease -forwards - backwards - sideways. They are great fun to steer -believe me, I know !!!


RO-RO VESSELS


Types of ships

The Ro-Ro, or more fully the Roll on - roll off vessel, comes in a number of shapes and sizes, but generally in two types; the passenger ro-ro and the Cargo ro-ro.
Passenger ro-ros have become common sights wherever people want to travel over water with their vehicles. It is probably the only type of cargo vessel that most people have travelled on. Usually a rear door (but sometimes a bow door) allows for vehicles to be driven on and off, stored on the car deck below the passenger accommodation areas.

Types of ships


The cargo ro-ro is less "plush" than the passenger type, as these vessels are designed for the carriage of commercial vehicles where luxurious passenger accommodation is not a primary consideration. Considerable concerns have been expressed over the bow-door type of ro-ro design. The HERALD OF FREE ENTERPRISE was one such vessel, where a practice of sailing before the bow door was fully closed had been allowed to develop. Tragically, on leaving Zeebrugge, the folly of this practice led to the disaster that claimed nearly 200 lives. If water is allowed to enter the car deck, the stability of the whole vessel can be rapidly affected. It is estimated that it only needs one centimetre of water over the whole car deck, for the vessel to become so unstable that it can overturn. The ESTONIA was another such vessel where, in a storm, the shield over the bow door was ripped off. Once water penetrated the car deck the vessel began to turn over and sink. In the bitter waters of the Baltic Sea, the loss of life was terrible. Another earlier accident was that of the SEASPEED DORA which led many to call these vessels "ro-ro-ro" ships - Roll on, roll off....roll over !!!

--
